Products List

JOUAV© Fixed-wing VTOL Platforms

JOUAV © was founded in 2010 and is the commercial drone professional based in China. 10+ Years R&D, Aircraft design and Manufacturing; 3000+ UAV Systems Shipped; 200+ Clients Worldwide. JOUAV © offers the most advanced automation technology and VTOL unmanned aircraft systems available along with complete turn key solutions including payload integration, training and technical support for clients all around the world.

JOUAV© Fixed-wing VTOL Platforms CW-007

CW-007

Payload 0.8kg

Mapping Drone for Professional Surveyors            > More details

JOUAV© Fixed-wing VTOL Platforms CW-10

CW-10

Payload 2kg

Advanced Tactical Maneuverability and Robustness   > More details

JOUAV© Fixed-wing VTOL Platforms CW-15

CW-15

Payload 2.5kg

Three-hour long endurance, the latest version of fold-able VTOL fixed-wing platform for  Geodrones © miniature system. > More details

JOUAV© Fixed-wing VTOL Platforms CW-20

CW-20

Payload 3kg

Hybrid (battery&gasoline) VTOL fixed -wing UAV, designed for quick deployment in an expeditionary environment.     > More details

JOUAV© Fixed-wing VTOL Platforms CW-30

CW-30

Payload 6kg

Twin-boom V-tail hybrid (battery& gasoline) VTOL fixed wing UAV, designed for professional use and specifically used for medium/large areas flight mission.     > More details

JOUAV© Fixed-wing VTOL Platforms CW-100

CW-100

Payload 20kg

Designed for professional use and specifically used for large areas flight mission. Payload up to 20 KG!    > More details


Geodrones System© Miniature Remote Sensors

The advanced Geodrones Aeromagnetic Survey System providing high-resolution and high-sensitivity magnetic data acquisition basing on drones platform.


Rubidium Optical Pump Magnetometer

700 gram

Miniature High Sensitive Rubidium Optical Pump Magnetometer Aeromagnetic Survey System.        > More details


3-axis Software Calibrated Fluxgate Magnetometer

50 gram

Light weight ( total weight only 450g) and small-sized, real-time data transmission, aeromagnetic correction added, high-precision three-axis vector Aeromagnetic Fluxgate Magnetometer Acquisition System.  > More details

UAV Multi-probe Radiation Detector

UAV Multi-probe Radiation Detector

Fold-able and light weight system, fully automatic flight, high precision, less terrain influences. With high precision laser altimeter for terrain fallowing function and FPV system for remote transmission of flight video as options. Real time survey data transmission, can be combined with Aeromagnetic survey system, one flight two set of data.              > More details

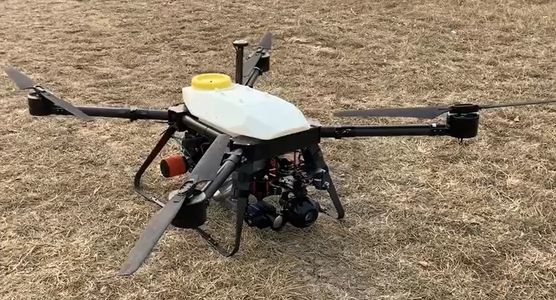

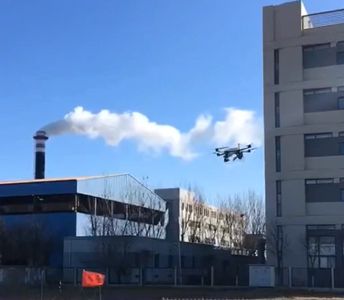

Geodrones © Long Endurance Gas Generator Hybrid Quadcopter

3+ hours flight per fuel 2kg payload

3+ hours flight per fuel 2kg payload

3+ hours flight per fuel 2kg payload


As a long endurance and high-quality flying platform, Gas Hybrid Quadcopter opens a wide range of new commercial possibilities for businesses such as inspection, search and rescue, power line inspection and survey industries etc.

Easy maintenance, local services

3+ hours flight per fuel 2kg payload

3+ hours flight per fuel 2kg payload


Maintenance is necessary for gasoline generator to keep its high performance. The maintenance cycle is 50-75 working hours depends on different working conditions.

Features

Specification:

Specification:


Geodrones long endurance gasoline generator hybrid quadcopter equipped with gasoline-electric hybrid power system. It’s made of very sturdy carbon fiber material and its arms are fold-able, which saves more space and makes this drone convenient for storage and transportation.


This quadcopter is equipped with Ardupilot flight controller. Long range telemetry datalink and radio control to make this drone very reliable and very safe.


Geodrones long endurance gasoline generator hybrid quadcopter is equipped with highly efficient power system, including 4x XRotor Pro X8 Motor & ESC Combo. This power system ensures high loading capacity and a very stable flight performance. It has 6 kg lifting capacity on each arm and has an 2500 w gasoline generator that offers 48 V output with plenty of electrical current to the 4 very high efficiency motors to ensure a long flight time. Max flight time approaches about 4+ hours without payload. Power system has fail-safe design, a 12S Lipo battery is installed on board,offering emergency back-up power and supporting quick climbing and maneuvering task.


For pdf download please click here.

Specification:

Specification:

Specification:

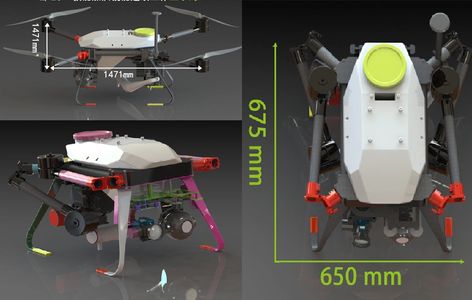

Diagonal Wheelbase: 1400mm
Frame Arm Length: 345mm
Dimensions: 1000x1000x530mm (arms unfolded, propellers removed)
675x650x530mm(arms folded)

Flight Controller: Ardupilot Pixhawk

Remote controller: DA16 or equivalence
Total Weight (no fuel): 13.2kg
Standard Takeoff Weight: 21 kg
Max Take off weight: 24.8 kg (at sea level)
Max Thrust-weight Ratio: 1.71(takeoff weight 23.8 kg)
Hybrid Hovering Power consumption: 2450W, ~2L fuel for 1 hour(takeoff weight 21 kg)
Hovering Time: 4+ hours(Without payload, Full fuel ,Wind speed less than 3m/s)
Max Flying Speed: 15m/s
Max Service Ceiling Above Sea Level: 2000 m
Operating Temperature: 0°C to 40°C

Maintenance cycle: 50- 75 working hours, depends on different working condition.
